- General Information
- Manufacturer
- Manhattan
- Manufacturer Website Address
- http://www.manhattan-products.com
- Brand Name
- Manhattan
- Product Type
- Signal Splitter
Easily distribute a single HDMI signal to multiple displays.

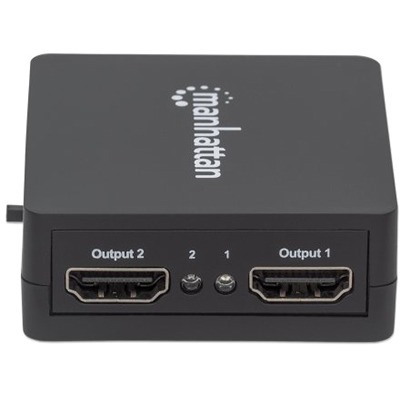

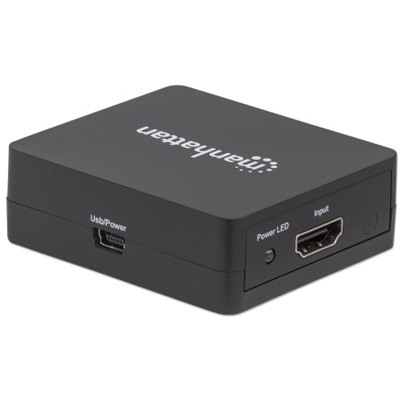

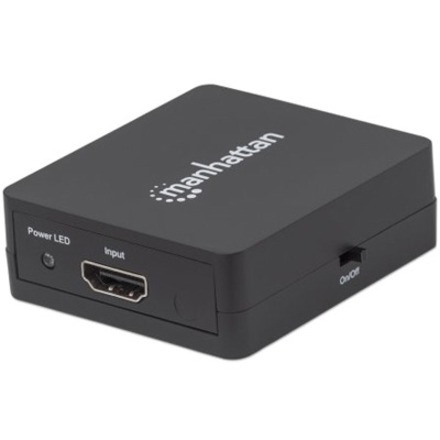

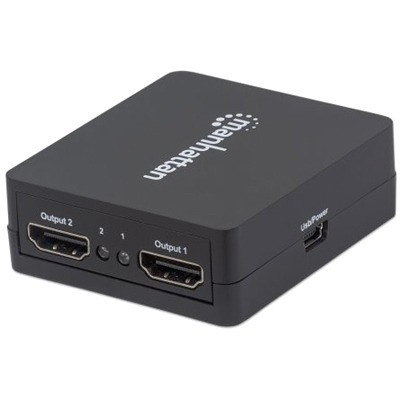

The Manhattan 1080p 2-Port HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 1080p 2-Port HDMI Splitter features a built-in booster for added signal strength. It's also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications.
Quality Construction and Easy Installation
Full compliance with HDMI, HDCP 1.0, 1.1 and 1.2 as well as DVI 1.0 ensures that the Manhattan 1080p 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the USB power cable, and this affordable HDMI solution is complete - no complicated settings or software or hardware configurations necessary.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Indicator Light
- Yes
- Video
- Maximum Video Resolution
- 1920 x 1200
- Maximum Video Bandwidth
- 225 MHz
- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 2
- Media & Performance
- Maximum Operating Distance
- 15 m
- Physical Characteristics
- Product Material
- Plastic
- Connector Plating
- Gold
- Height
- 21 mm
- Width
- 142 mm
- Depth
- 54 mm
- Weight (Approximate)
- 36.3 g
- Miscellaneous
- Package Contents
- 1080p 2-Port HDMI Splitter
- USB Power Cable
- Quick Instruction Guide
